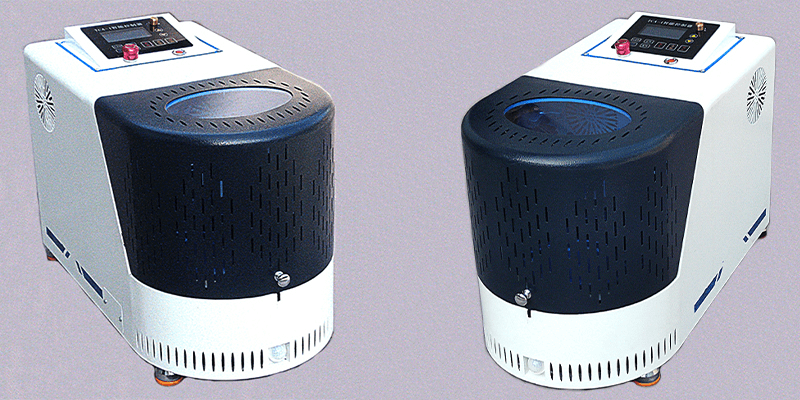

Nano Planetary Ball Mill with Dual Jars With Maximum Speed of 1630rpm

Description

Model Number:Zoway-PBM-H-0.4A
1. Compliance:CE Certified
2. Warranty:2 Year limited warranty with lifetime support
3. Delivery Time:In Stock

Email: imani@batterypackassembly.com
Tel:+86 13174506016
WhatsApp:+86 13174506016
WeChat:+86 18659217588

Content

Email: imani@batterypackassembly.com

Characteristics of high-energy planetary mill

The high-energy ball mill mainly adopts the principle of planetary mill. It drives the medium in the tank to collide, shear and disperse with the material through the high speed centrifugal force. The inner wall of the tank and the ball speed are different, the friction force and impact force between the material and the medium are different, and the high energy generated is different. The self rotating speed of 1630 turns generates high energy (equivalent to 60 times the gravity acceleration), and reliable and reproducible nano grinding results can be obtained in a very short time, This equipment is an ideal equipment for sample mixing and homogenization or mechanical activation and alloying with high efficiency, and is suitable for sample preparation for geology and minerals, pharmacy, mechanical alloying, chemistry, nanotechnology, metallurgy, material research, ceramics, biology, and analysis.

Parameter

Model	PBM-H-0.4A
Volume（L）	0.4
Configurable ball mill tank specifications	50-100ML
NO.	2
Matching vacuum ball milling tank	50ml vacuum ball mill
Standard ball mill tank locking device	Self-locking

Power(Single phase)	Single phase 200V-50HZ
Motor power(KW)	0.37
Total operation setting time（min）	1-9999
Alternate running time（min）	1-999
Adjustable speed revolution(rpm)	47-815
Adjustable speed rotation(rpm)	94-1630

Standard panel (intelligent and touch screen optional)	Ordinary
Lubrication method	Lubricating oil
Speed regulation mode	Frequency control
Weight（kg）	35
Overall dimension(mm)	570300450
Noise≤db	55±5
