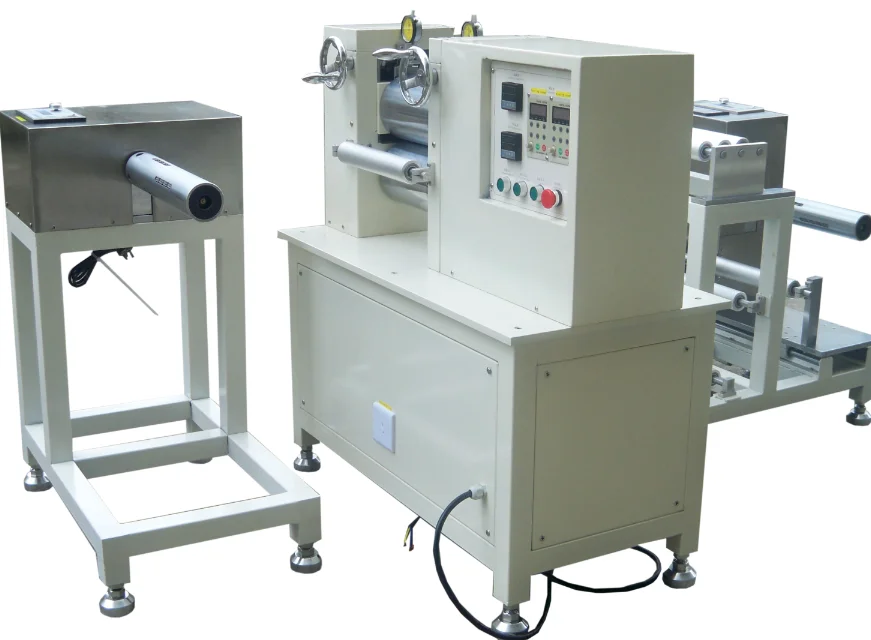

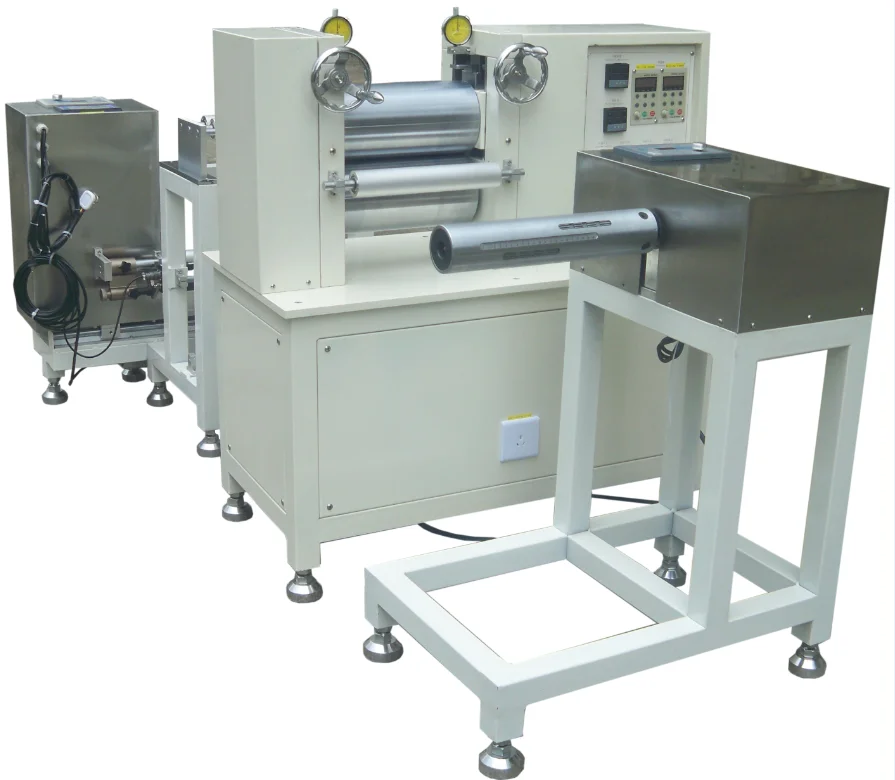

Roll To Roll System Roller Press Machine

Description

Model Number:Zoway-roll300
1. Compliance:CE Certified
2. Warranty:2 Year limited warranty with lifetime support
3. Delivery Time:In Stock

Email: imani@batterypackassembly.com
Tel:+86 13174506016
WhatsApp:+86 13174506016
WeChat:+86 18659217588

Content

Email: imani@batterypackassembly.com

Introduction

ZOWAY-roll300 is an automatic Roll to Roll system designed for continuous handling of flexible substrate materials less than 250mm wide. It enables the automatic R2R film calendering on

Specifications

Working Voltage	208 - 240 VAC, 50/60Hz, Single Phase 110V -220V AC Power plug is not included
Max. Power Consumption	300W
Front Panel & Tension Control	Infinite switch for various tension control 0~20N Tension adjustable torque motor for active reeling Friction resistant passive unreeling
Motor Type	The use of brushless motor ensures no sparking in the Ar gas environment
Reeling Width	< 200mm width for flexible substrate material
Traverse Speed	The film traverse speed is dependent on its calendering speed, normally <1.5 meters/min
Roller's O.D	3 inches
Reeling/Unreeling Roll Diameter	Max. 300mm
Compliance	CE certified
Warranty	Two years limited warranty with lifetime support
Net Weight	350kg
