Heat Dry Oven

Description

Model Number:Zoway-DHG
1. Compliance:CE Certified
2. Warranty:2 Year limited warranty with lifetime support
3. Delivery Time:In Stock

Email: imani@batterypackassembly.com
Tel:+86 13174506016
WhatsApp:+86 13174506016
WeChat:+86 18659217588

Content

Email: imani@batterypackassembly.com

Features

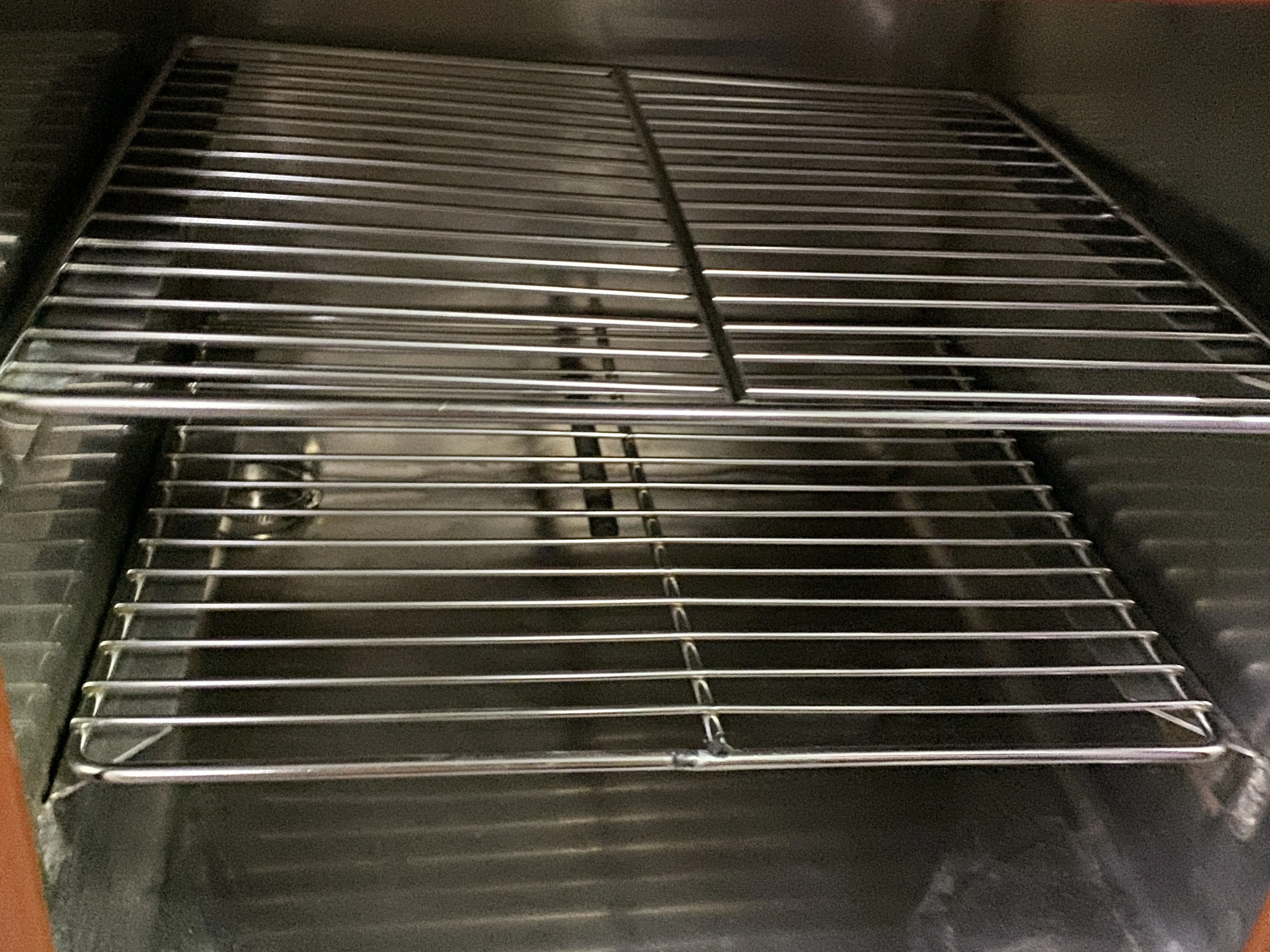

Vacuum drying oven adopts flexible and adjustable shelves, and the height of layers can be adjusted. Strip shelf, easy to take and place products. Large glass observation window is used for easy observation. Silicone rubber is used for sealing, which is heat resistant and durable, and has high vacuum.

Technical Parameter

Structure	1. The chamber is structured with stainless steel and welded to bracing pieces. 2. A good vacuum sealing is achieved by the silicone gasket and the positive latch door. 3. The double layers observation window consists of 1/2" tempered glass and transparent polycarbonate shield. 4. Two stainless steel shelves are included to facilitate processing efficiency.
Working Voltage	AC 110 - 240 V 50/60 Hz
Input Power	500W
Working Temperature	RT+10 ~ 200°C for the continuous use

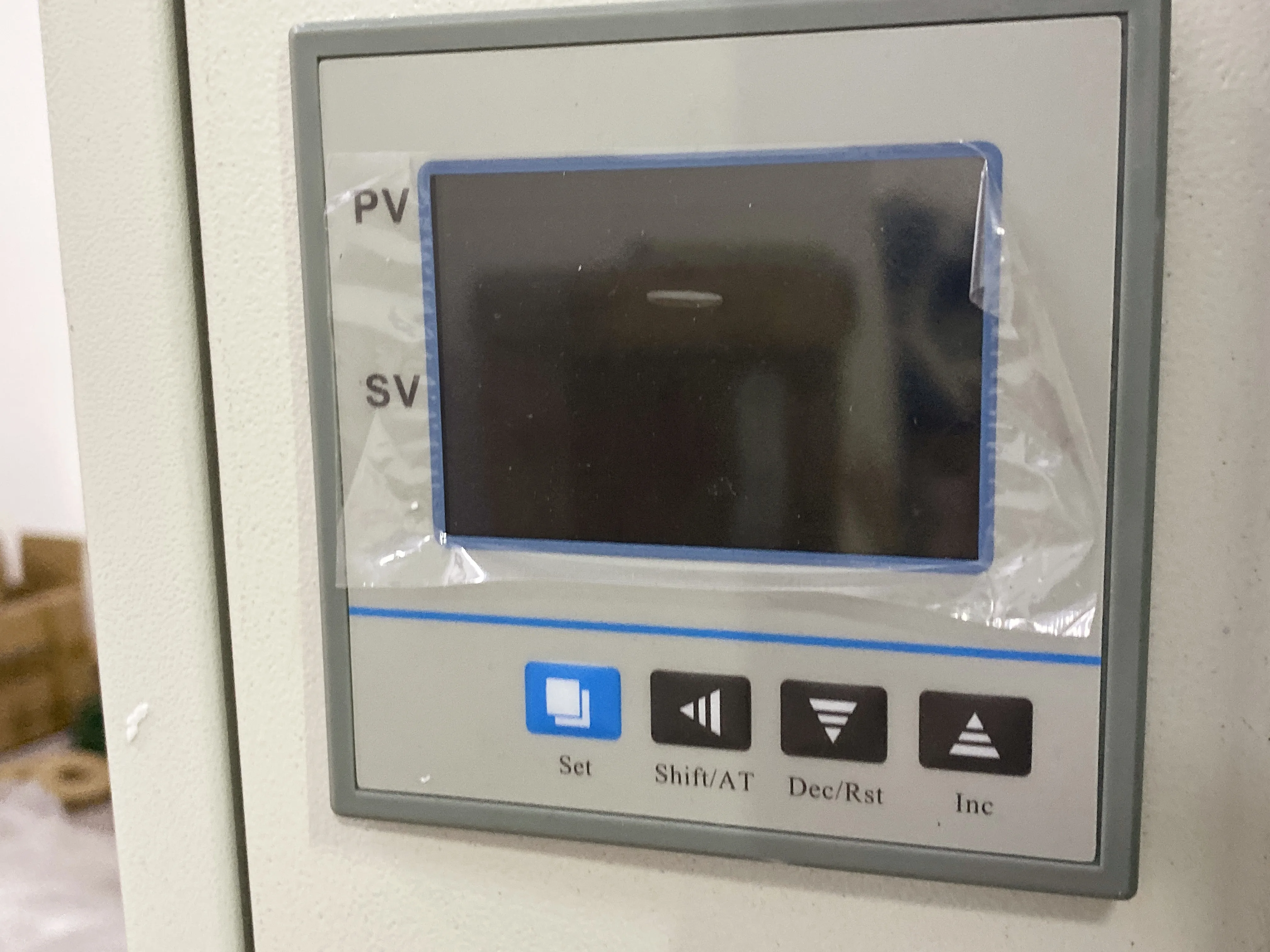

Temperature Controller	1. Single point temperature setting 2. Built-in over-temperature protection 3. PID precise temperature control 4. Temperature control accuracy: +/-0.1°C 5. Temperature uniformity: +/-5°C @ 100°C, 25" Hg at center 6"x6" area only
Warranty	Two years limited warranty with lifetime technical support
Application Notes	Such an oven is an excellent tool for the larger volume of battery electrode drying.
