Description
Model Number:Zoway-PV-50L
1. Compliance:CE Certified
2. Warranty:2 Year limited warranty with lifetime support
3. Delivery Time:In Stock
Email: imani@batterypackassembly.com
Tel:+86 13174506016
WhatsApp:+86 13174506016
WeChat:+86 18659217588
Email: imani@batterypackassembly.com
Introduction
The vacuum planetary mixer is programmable in vacuum operation , raise or down, speed adjusting by the frequency inverter , temperature show/control , urgent stop , and so on.
It is excellent for preparing LiCoO3, LiFePO4, Phosphors...electrode slurry and ceramic slurry without gas bubble.
Technical Parameters
Viscosity range | 12,000-20,000 cp |
Volume | Design volume: 265L, effective volume: 200L |
Mixing barrel | φ750mm, depth 600mm |
Machine material | SUS304 |
Power | 15KW |
Vacuum degree | -0.098Mpa |
Temperature control range | 20~90℃ |
Lifting stroke | 700mm |
Dimensions | L2400mm x W1600mm x H2750mm |
Machine weight | about 4.0 tons |
Safety protection
1. There is an audible and visual alarm when the mixing tank rises or falls;
2. After the mixing tank is in place, the mixer can work;
3. The barrel body cannot be raised and lowered when the mixer is working;
4. Automatic protection of electrical appliances; emergency stop protection for operators;
5. Mixer, electrical cabinet and control box should be grounded.
Equipment technical parameters:
1, the equipment is suitable for viscosity: 1 thousand -20,000 cp;
2, the total power: about 37kw;
3. Vacuum: ≤-0.098Mpa;
4. Positive pressure of water-cooled jacket of mixing tank: ≤0.4Mpa.

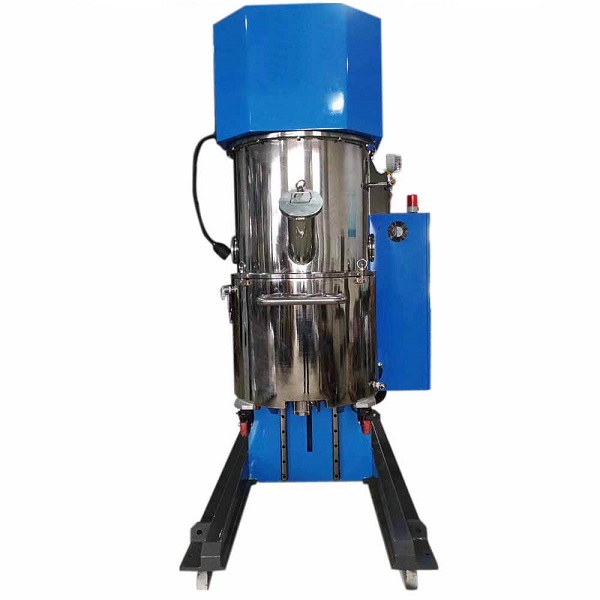

Product Images
