Three Roll Transfer Coater Machine

Description

Model Number:Zoway-SY300
1. Compliance:CE Certified
2. Warranty:2 Year limited warranty with lifetime support
3. Delivery Time:In Stock

Email: imani@batterypackassembly.com
Tel:+86 13174506016
WhatsApp:+86 13174506016
WeChat:+86 18659217588

Content

Email: imani@batterypackassembly.com

Introduction

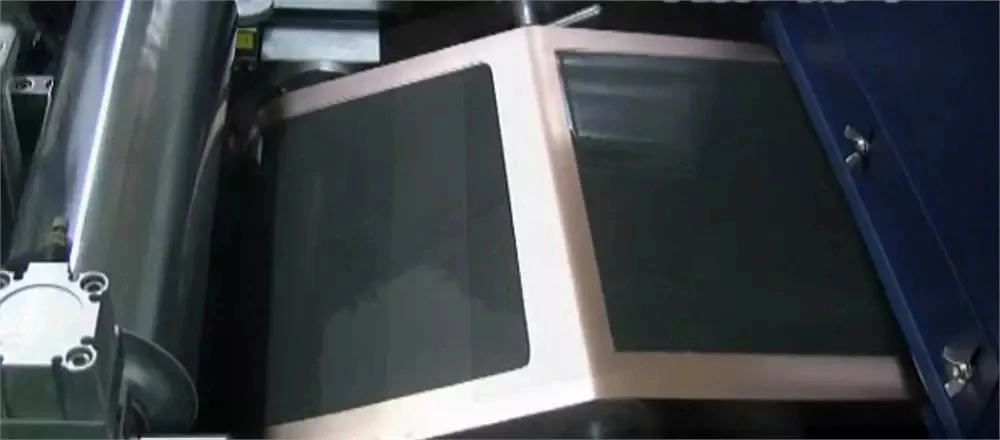

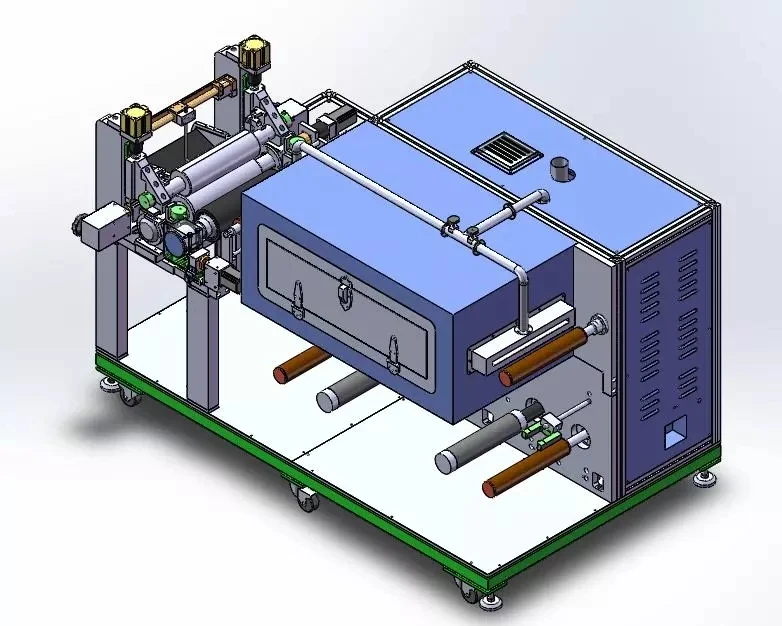

This coater is a three roll transfer coating equipment, which can be used for continuous and intermittent coating, and is convenient for surface coating of various substrates. Especially used in the lithium-ion battery industry, the device is designed to facilitate researchers to use, and meet the requirements of coating accuracy and consistency, which is no different from the production requirements. It has excellent drying effect, and is an ideal choice for lithium-ion batteries, supercapacitors, nickel batteries and other secondary batteries.

Features

*It can switch freely to realize continuous and intermittent coating;
*Base material tension control, stable belt running, and deviation correction device;
*Hot air oven, upper and lower double side blowing, drying effect is high quality;

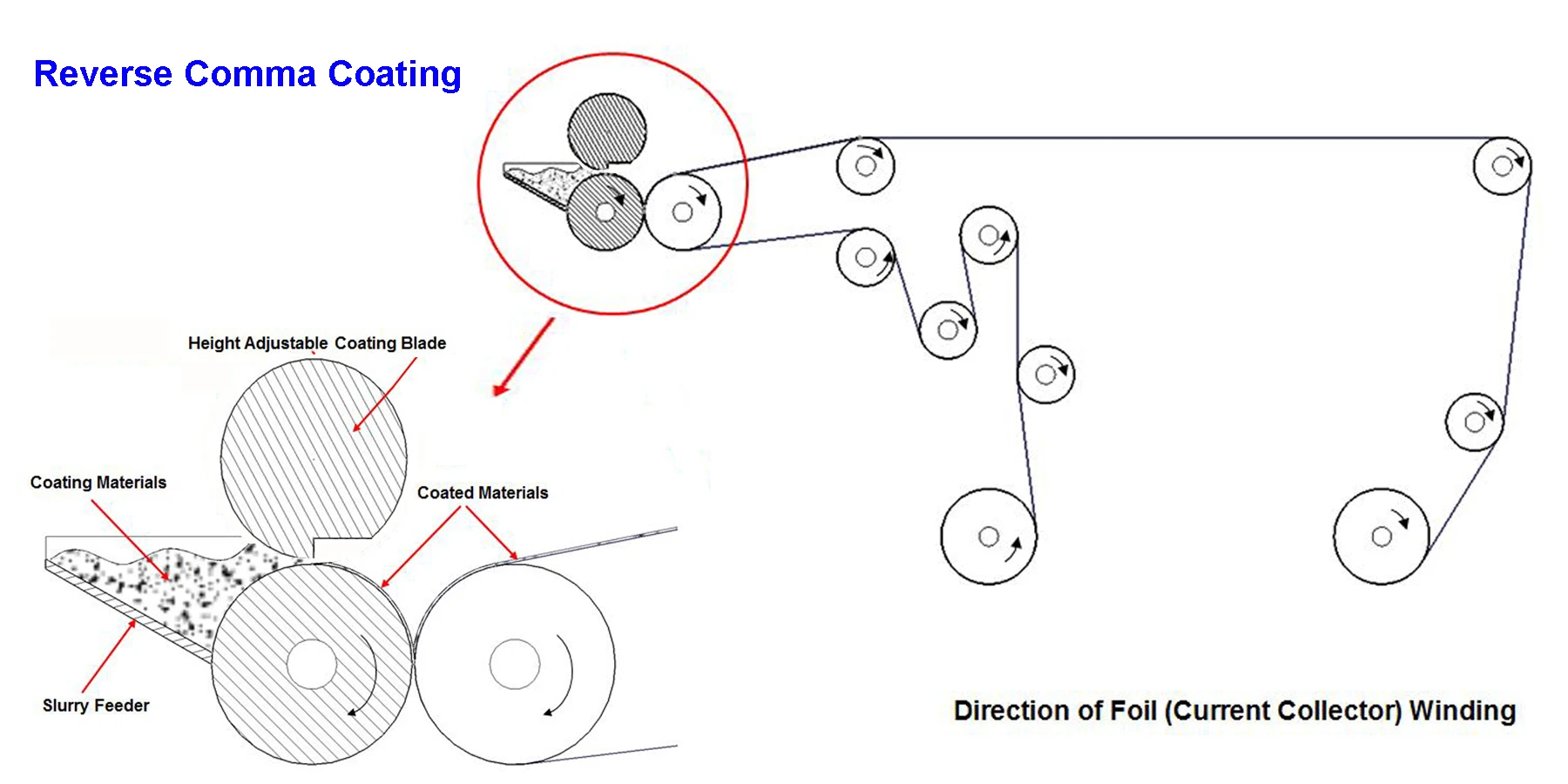

*Three roll transfer coating with wide coating window;
*Comma scraper metering, with precision adjustment mechanism, to obtain high coating precision;
*PLC control, touch screen operation, easy to use;

Specifications

No.	Item	Spec
1.	Fit system	Coating process for positive and negative plates of ternary, lithium iron phosphate, lithium cobalt oxide, lithium manganese oxide, graphite, silicon carbon and other systems
2.	Coating method	Continuous coating and intermittent coating
3.	Number of oven sections	One 1 meter oven(can be customized)
4.	Coating speed	0~0.5m/min
5.	Operating substrate thickness	Aluminum foil: 8~30um Copper foil: 8~30um
6.	Design width of roll surface	330 mm
7.	Effective coating width	Within 280mm(can be customized)
8.	Coating roller	φ120mm
9.	Scraper roller	φ80mm
10.	Coating accuracy	±3um
11.	Weight accuracy of double-sided coating (mg / cm2)	Coating center value±1.0%
12.	Suitable for slurry viscosity	2000~12000 (mPas)
13.	Single side coating dry thickness range	20-200μm
14.	Solvent properties	Oily solvent NMP(s.g=1.033,b.p=204℃)
15.	Solvent properties	Water-based H2O/NMP(s.g=1.000,b.p=100℃)
16.	Suitable for solid content range	20~85%
17.	Coating size accuracy (mm)	L≤±1,W≤±0.5
18.	Front and back alignment accuracy (mm)	L≤±1,W≤±0.5
